Home / All / Agricultural machine tractor / Agricultural Machinery Tractor 4 Wheel Tractor 40hp Mini Farm Tractor For Farm Medium Horsepower
Agricultural Machinery Tractor 4 Wheel Tractor 40hp Mini Farm Tractor For Farm Medium Horsepower
Detail Information

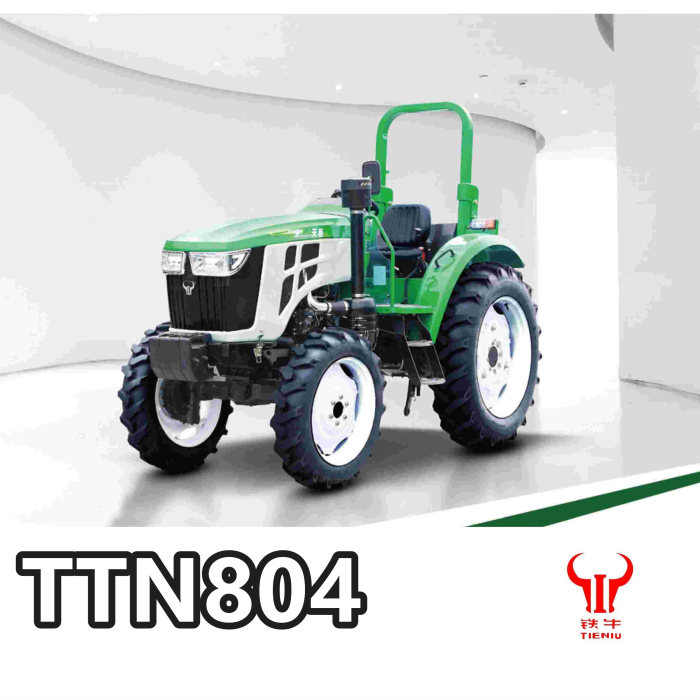

Tiantuo Tieniu TTN804 Tractor Agriculture Medium Horsepower Four-Wheel Drive Tractor.
Product Details：
| Model | TTN804 | |
|---|---|---|
| External dimensions (length*width*height)mm | 3770*1710*2525(Top of anti-turnover frame) | |
| Minimum use quality(kg) | 2410 | |
| Type | 4*4 4WD | |
| Engine | Zhejiang Xinchai Company Limited | |
| Rated power(kw) | 59 | |
| Calibration speed(r/min) | 2400 | |
| Gearbox form | Mechanical plane composition | |
| Steering systerm form | Full hydraulic steering | |
| Tyre Type forward | 8.3-24 | |
| reverse | 11.2-32 | |
| Wheelbase(mm) | 1970 | |
| Wheeltread | Front wheel | 1200、1300、1400 |
| Rear wheel | 1200、1300、1400 | |
| Power transmission speed r/min | 540/760 | |
| Hydraulic suspention system form | Seperated type | |
| Form of suspension device | Rear three-point suspension | |
| Anti-turnover/wheel house | Anti-turnover | |
| Maximum counterweight(forward/reverse) | 60/60 | |
| Number of hydraulic output groups | 2 groups | |
| Optional installation | Wheel house | |
