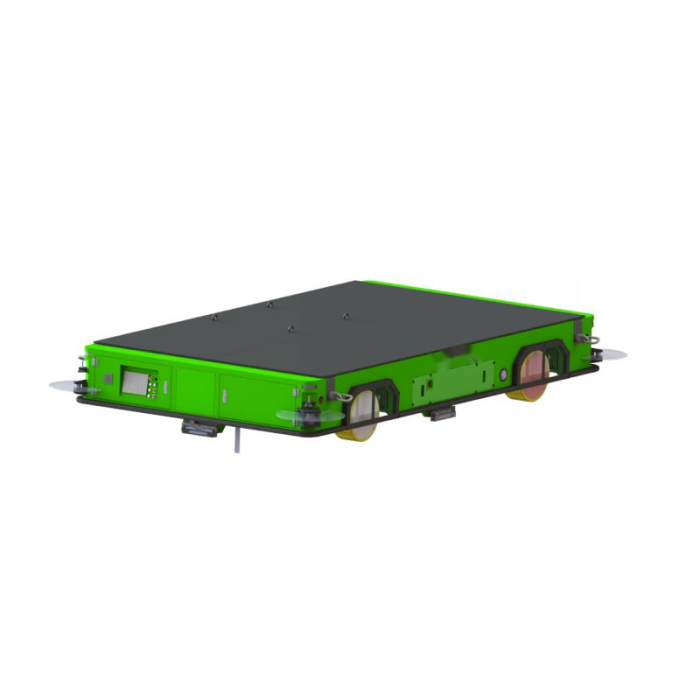

60Ton Heavy-Duty AGV for OEM, ODM, Wholesale

Rated load (kg) ：50000

Equipment weight (kg) :8000

Body shape (mm): L4500mm*2522*670mm (subject to the joint signature drawing)

Lifting stroke (mm) :100mm

Climbing ability (°) :≤5°

Working environment :Indoor and outdoor operation

Body structure :Differential drive

Number of driving wheels (pairs) :Four-wheel drive eight-wheel

Operation mode :The whole vehicle can realize forward and backward straight driving, left and right straight driving, rotation in place, and turning movement in the plane under no-load and full-load conditions

Drive motor type :Low-voltage servo motor + independent servo controller

Suspension type: 1. Hydraulic suspension;

Passive suspension, reliable performance, so that multiple wheels are evenly stressed.

Travel speed :0-30m/min

Battery type :Lithium iron phosphate battery, battery life 6 hours each when empty and full

Navigation accuracy (mm) :±10

Navigation mode :Magnetic stripe/laser + magnetic stripe/laser + QR code composite navigation

Control mode :Automatic dispatch + wireless remote control

Safety protection :Laser obstacle avoidance sensor + contact anti-collision + sound and light warning + emergency stop

Charging method :Automatic charging

Braking distance (mm): Full load braking ≤500mm, no load braking distance ≤300mm

Protection level :IP44
