Tractor Agriculture With Front End Loader And Backhoe From China Factory Supply
Detail Information

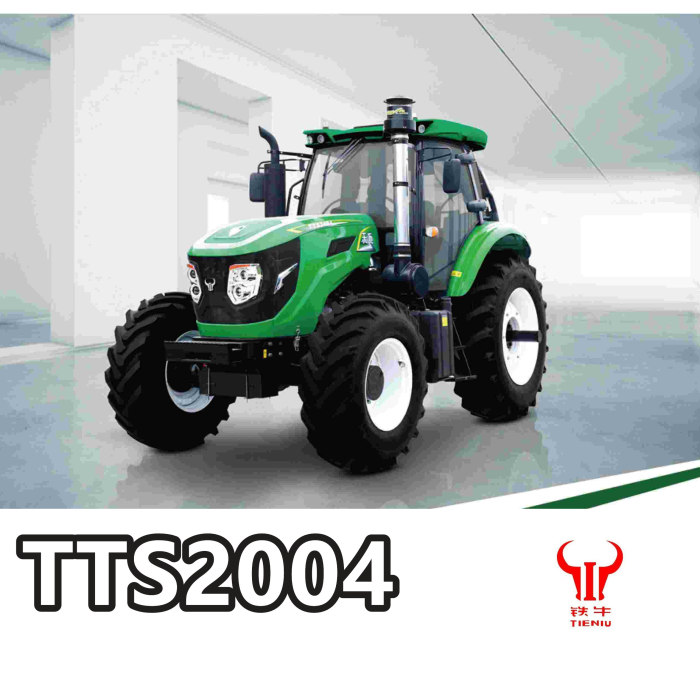

TTS2004 200hp 4WD Farm Tractor
The TTS2004 is a powerful 200hp 4WD farm tractor built for heavy-duty agricultural operations. Powered by a WP6G200E330 diesel engine with full hydraulic steering and rear three-point suspension, it delivers reliable performance for plowing, deep tillage, and large-scale transport.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | TTS2004 |
| Dimensions (LxWxH) | 5460 x 2785 x 3215 mm |
| Weight | 6900 kg |
| Drive | 4x4 4WD |
| Engine | WP6G200E330 |
| Rated Power | 147 kW / 200 hp |
| Rated Speed | 2200 r/min |
| Transmission | Mechanical |
| Drive Train Cases | 2 cases |
| Steering | Full hydraulic |
| Front Tires | 420/85R28 |
| Rear Tires | 520/85R38 |
| Wheelbase | 2830 mm |
| Front Tread | 1720 / 1810 / 2000 / 2100 mm |
| Rear Tread | 1680-2380 mm |
| PTO Speed | 760 / 850 r/min |
| Hydraulic System | Separated type |
| Suspension | Rear 3-point |
| Cab / ROPS | Wheel house |
| Counterweight (F/R) | 1110 / 480 kg |
| Hydraulic Outputs | 3 groups |
Key Features
- 200hp WP6G200E330 diesel engine for reliable field performance
- 4x4 four-wheel drive with excellent traction on all terrains
- Full hydraulic steering for precise maneuverability
- 760/850 rpm PTO for versatile implement operation
- Rear three-point suspension compatible with wide range of implements
- Wheel house cab for operator comfort
- 3 hydraulic output groups for multi-implement use
