Home / All / 30-150HP tractor /

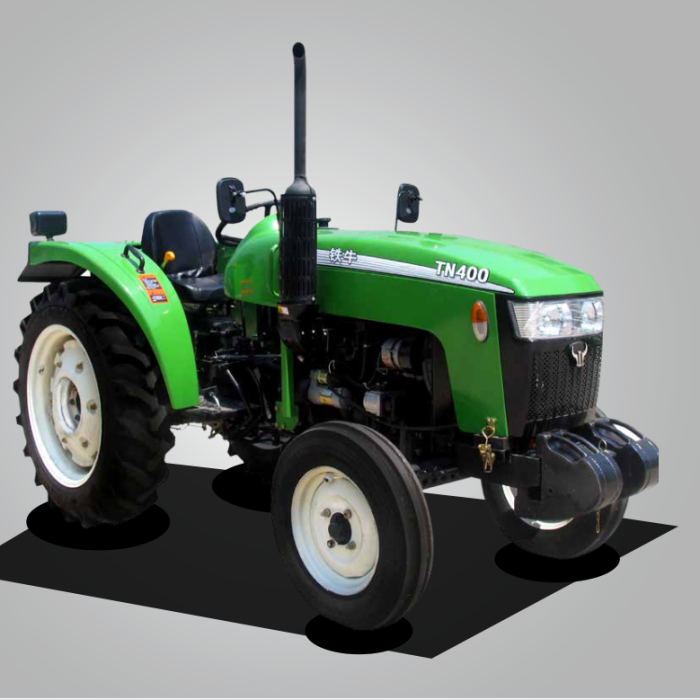

TNC300/TNC350/TNC400 Tractor Agricultural Machinery Farm Equipment Tractor
TNC300/TNC350/TNC400 Tractor Agricultural Machinery Farm Equipment Tractor
Categories | 30-150HP tractor |
---|---|
Model | TNC300/TNC350/TN400 |
COLOR | DARK GREEN |
IRONMAKE | FOUR WHEEL |
SMALL HORSEPOWER | MEDIUM HORSEPOWER |
BRAND | Arable Bull/OEM |
FOB port | tIANJIN PORT |
Terms of Payment | L/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal |
Update Time | Dec 14,2024 |
Detail Information
TNC Series Tractor Product Features
This series of tractor is nine main type covering 30, 35, 40, 45, 50, 55, 60, HP, and there are a variety of
configuration models to choose. ·Compact structure, flexible and convenient operation. ·Large traction force, torque reserve sufficient, good adhesion performance, high comprehensive utilization
rate. Electric start and convenient, low fuel consumption. ·This series of tractors has strong adaptability, wide range of purpose, particularly suitable for paddy field. ·This series of tractor appearance is concise, beautiful and easy
Wheeled Tractors Technical Specification
Model | |||
Part Name | TNC300 | TNC350 | TNC400 |
Over size(length×width Xheight) mm | 3200 ×(1300 1460) ×1930 | 3230×1435×2083 | 3292×1435X2133 |
Minimum operating weight kgMin | 1290 | 1520 | 1795 |
Type | 4X22WD | ||
Engine | JD3B3M2 | 4TE35A | JD4B4M2 |
Ra too sd power (kW) | 22.1 | 25.8 | 29.4 |
Rated speed (x/min)
|
2400
|
2400
|
2300
|
clutch | Single chip, single action | ||
GearboxShuttle-typeGearshiftF/R
|
(4+1)×2
|
(4+1)×2
|
(4+1)×2
|
steering system type
|
Mechanical steering
|
||
Front wheel? Rear wheel
|
5.00-12/9.5-24
|
5.00-15/11.2-24
|
6.00-16/11.2-28
|
Wheelbase mm | 1695 | 1776.5 | 1839 |
The front track can be adjusted in steps nmExont (adjustable mm | 1050, 1150.1250 | 1050, 1150.1250, 1350, 1450 | 1050, 1150, 1250, 1350, 1450 |
Rear track stepless adjustment umEesx(&tealesaadjustment) mm | 1060.1120.1220 | 1150.1250.1350.1450 | 1150, 1250, 1350, 1450 |
Power output shaft type | Post non independent | ||
singlespeedpower outputspeed | 720 | 540/720 or 540/1000 | 540/720 or 540/1000 |
Tillage depth adjustment method | Degree, position adjustment | height &position | |
Hy drauliclifting systemtype | partial sepaxated unit | ||
suspension type | 3-point linkage | ||
Cab Anti tipping frame i cab | / | ||
chair | Before and after adjustable | ||
Theweightbefore/after (kg) | 48/140 | 48/160 | 48/160 |
Air brakeAir brake | Air brake and traction hook tools |
Tiantuo after-sales service team can provide 24 hours/7 days online service, and provide customers with solutions within 1-3 days after customer complaints. Tiantuo always insists on "For the farmers. For the people who work for the farmers. For ourselves. For the future" to provide the best service for all customers.
