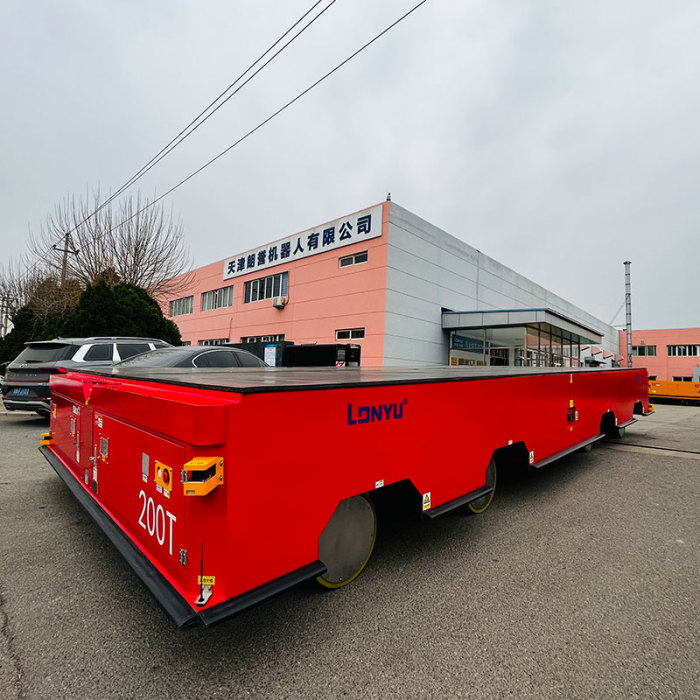

200ton-Heavy-duty-AGV-backpack-transmission-box
| Share | |
|---|---|
| Categories | Automated guided vehicle |
| Model | LY-1-20 0T -816-A |
| Rated load | 200T |
| Quipment weight | 35T |
| Body shape | L8100 *W3500 *H870 |
| Lifting stroke | 200mm _ Climbing ability(°) ≤5° |
| Working environment | Indoor and outdoor work |
| Body structure | differential drive |
| Number of driving wheels (pair) | Eight-wheel drive and sixteen wheels |
| Operation mode | The whole vehicle can realize forward and backward |
| Update Time | Feb 1,2026 |
Detail Information
Drive motor type： Low voltage servo motor + independent servo controller
hanging form
1.Hydraulic suspension;
2.It is a passive suspension with reliable performance and even stress on multiple wheels. Walking speed 0-30 meters/min
battery form Lithium Iron Phosphate Battery , 96V/ 600 AH
Navigation Magnetic stripe navigation , inching accuracy ±3mm
control method ：wireless remote
Security
Laser obstacle avoidance sensor + contact collision avoidance + sound and light warning + emergency stop
charging method ：Manual charging
Braking distance (mm) ：Full load braking ≤500mm, no-load braking distance ≤300mm
Protection level： IP44 /IP65
