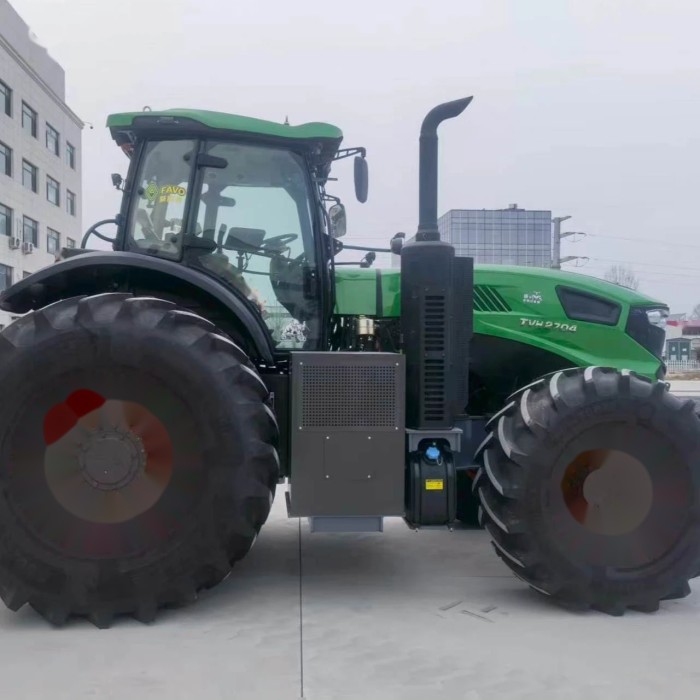

TVH2704-3504 Hybrid Tractor
Detail Information
TVH2704-3504 Hybrid Tractor
Hybrid tractors adopt a diesel engine plus motor hybrid drive system. Supported by an intelligent energy management system, it dynamically distributes power according to various working conditions such as heavy load, light load, and sloped fields, achieving optimal fuel efficiency and performance.
Key Highlights
| Fuel Saving Overall fuel saving rate: 10%~35% | Traction Maximum traction force: 70~119 kN | Smooth Operation No shift jerk, smooth throughout | Comfort Shock-absorbing seat, long-duration operation | Versatile Suitable for heavy/light/sloped fields |
Technical Specifications
| MODEL | TVH2704 | TVH3004 | TVH3504 |
| HP | 270HP | 300HP | 350HP |
| DRIVE | 4X4 | ||
| ENGINE | Hybrid, Shangchai | ||
| DIMENSION | 6120 x 2890 x 3380 mm | ||
| CLEARANCE | 480 mm | ||
| WEIGHT | 12,400 kg | ||
| TRANSMISSION | Hybrid E-CVT-I (Power Split) | ||
| BATTERY | 6 KWH | ||
| TANK | 700 L | ||
| TIRE | 600/70R30, 710/70R40 | ||
Suitable for large-scale farming, heavy tillage, field preparation, and transportation. The hybrid system excels in diverse scenarios from flat-field plowing to sloped terrain operations.
