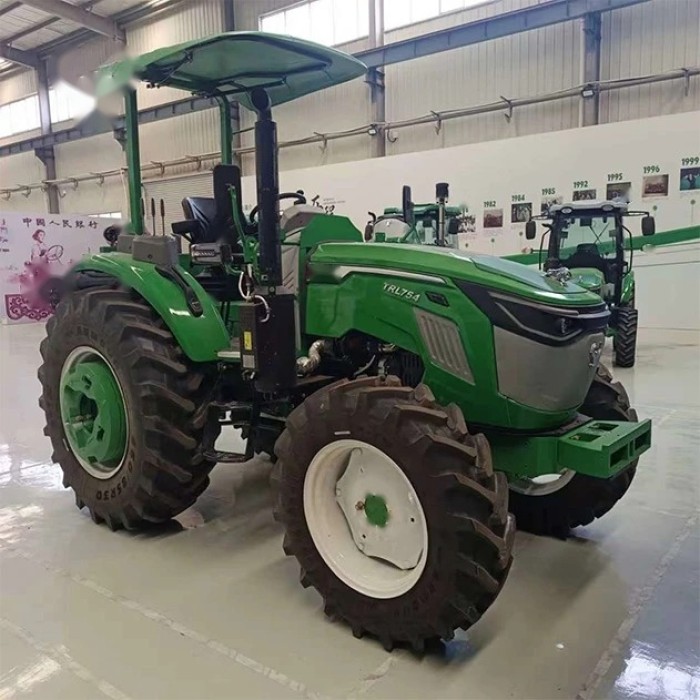

TB SERIES 70-100HP TRACTOR
Detail Information
TB SERIES 70-100HP TRACTOR
The TB Series tractors from offer a versatile 70-100 HP range with multiple engine options from Yuchai, YTO, and Quanchai. With reinforced chassis, spacious cabin, and planetary final drives, these tractors deliver reliable power for heavy-duty farming operations.
Technical Specifications
| MODEL | TRL704 / TRL804 / TRL904 / TRL1004 |
| HORSE POWER | 70 HP / 80 HP / 90 HP / 100 HP |
| WHEEL DRIVE | 4X4 |
| ENGINE BRAND | YUCHAI / YTO / QUANCHAI |
| ROPS | Roll bar and roof / Air condition cabin |
| DIMENSION | 4180 x 1950 x 2950 mm |
| GROUND CLEARANCE | 420 mm |
| WEIGHT | 3,500 kgs |
| WHEEL TREAD | 1,300 / 1,400 / 1,450 mm |
| WHEEL BASE | 2,080 mm |
| GEAR SHIFT | 12F + 12R |
| 3-POINT | Category II |
| TIRE | 9.5-24/14.9-30, 12.4-24/18.4-30, 320/85R24-460/85R30 Radial |
| PTO | 6 splines, 35mm, 540/1000 RPM |
| FUEL TANK | 90 Liters |
Reinforced chassis with planetary final drives for durability. Multiple engine options for flexible power selection. Comfortable cabin with air conditioning available. Suitable for heavy plowing, tillage, and transport applications.
