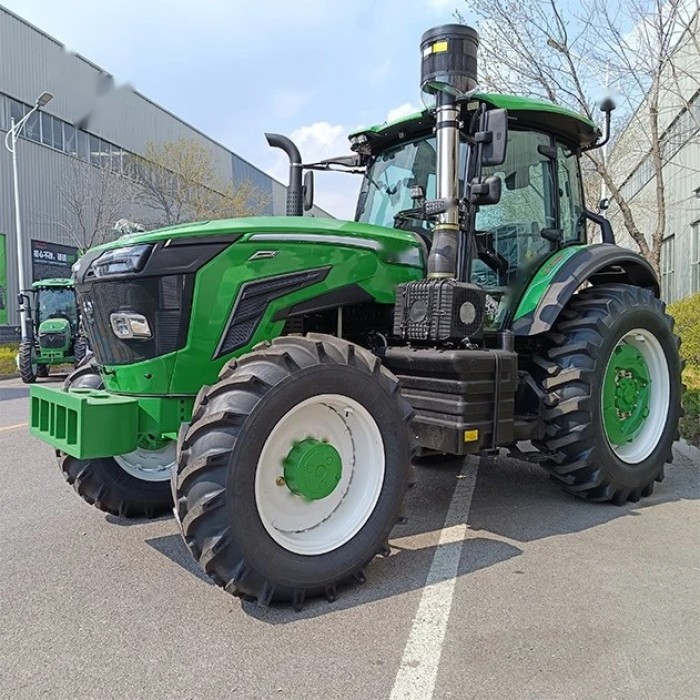

TDF SERIES 120-160 HP TRACTOR
The TDF Series tractors deliver 120-160 HP power with Yuchai engines for heavy-duty farming. Designed with a spacious air-conditioned cabin, planetary final drives, and a large 480mm ground clearance for superior field performance in large-scale agriculture.
Technical Specifications
| MODEL | TTF1204 / TTF1404 / TTF1604 |
| HORSE POWER | 120 HP / 140 HP / 160 HP |
| WHEEL DRIVE | 4X4 |
| ENGINE BRAND | YUCHAI, Emission Stage III |
| ROPS | Air condition cabin |
| DIMENSION | 5110 x 2150 x 3010 mm |
| GROUND CLEARANCE | 480 mm |
| WEIGHT | 5,360 kgs |
| WHEEL TREAD | 1,720 - 2,010 mm |
| WHEEL BASE | 2,690 mm |
| GEAR SHIFT | 16F + 8R |
| REAR SUSPENSION | Category III |
| TIRE | 12.4-24 / 16.9-34, 14.9-24 / 18.4-30 |
| PTO | 6/8 Splines, 540/1000 RPM |
Planetary final drives for enhanced durability and torque. Spacious cabin with air conditioning for operator comfort. Large fuel capacity for extended working hours. Suitable for heavy plowing, deep tillage, and large-scale agricultural operations.
