3Y SERIES 100-120 HP TRACTOR
Detail Information
3Y SERIES 100-120 HP TRACTOR
The 3Y Series tractors from deliver 100-120 HP power with Yuchai engines for versatile farming operations. Featuring a spacious A/C cabin, 12+12 gear shift, and Category II Plus rear suspension, these tractors combine power and comfort for demanding agricultural tasks.
Technical Specifications
| MODEL | TN1004-X / TN1204-X |
| HORSE POWER | 100 HP / 120 HP |
| WHEEL DRIVE | 4X4 |
| ENGINE | YUCHAI, Emission Stage III |
| ROPS | Air condition cabin |
| DIMENSION | 4600 x 2100 x 2950 mm |
| GROUND CLEARANCE | 400 mm |
| WEIGHT | 4,345 kgs |
| WHEEL TREAD | 1,300 - 1,950 mm |
| WHEEL BASE | 2,250 mm |
| GEAR SHIFT | 12F + 12R |
| REAR SUSPENSION | Category II Plus |
| TIRE | 12.4-24 / 16.9-34 Inch |
| PTO | 6/8 Splines, 540/1000 RPM |

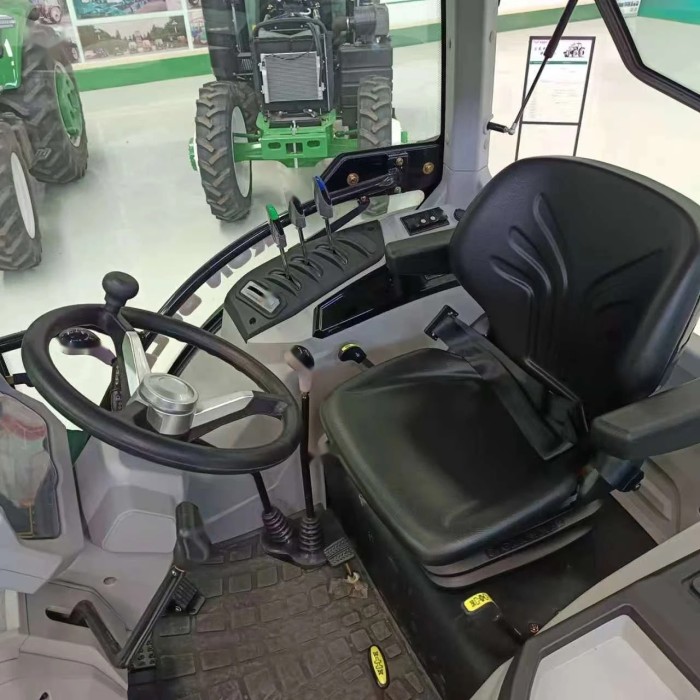

Air-conditioned cabin for operator comfort during long working hours. Powerful hydraulic system for efficient implement operation. Wide wheel tread range for adaptable row spacing. Suitable for tillage, seeding, and transport applications across diverse farm sizes.
