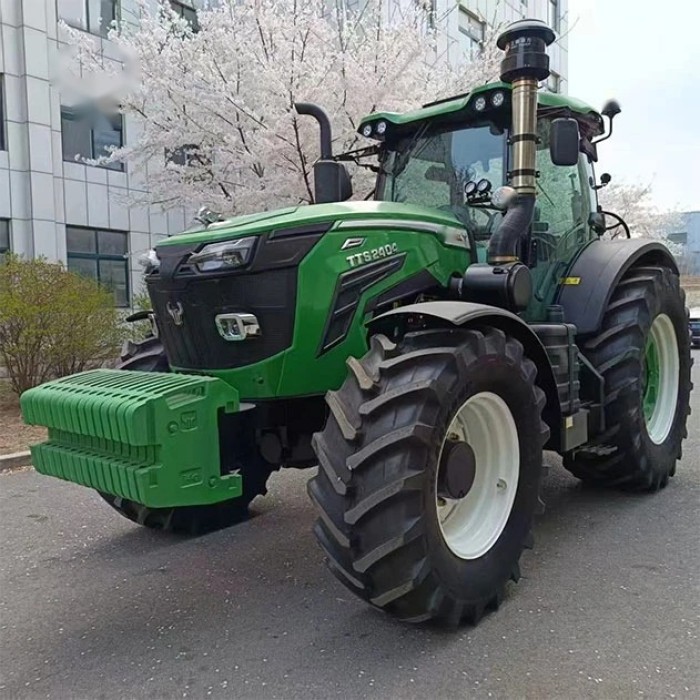

TS SERIES 200-260 HP TRACTOR (TTS2404 Series)
Detail Information
TS SERIES 200-260 HP TRACTOR (TTS2404)
The TS Series tractors deliver 200-260 HP heavy-duty power with Shangchai engines, designed for the most demanding large-scale farming operations. Featuring advanced 16+16/32+32 transmission, spacious A/C cabin, and category III rear suspension, these tractors offer unmatched power and operator comfort.
Technical Specifications
| MODEL | TTS2004 / TTS2204 / TTS2404 / TTS2604 |
| HORSE POWER | 200 / 220 / 240 / 260 HP |
| WHEEL DRIVE | 4X4 |
| ENGINE | SHANGCHAI, Emission Stage III |
| ROPS | A/C Cabin |
| DIMENSION | 5460 x 2785 x 3215 mm |
| GROUND CLEARANCE | 515 mm |
| WEIGHT | 8,555 / 8,795 / 9,455 / 9,655 kgs |
| WHEEL TREAD | 1,680 - 2,380 mm |
| WHEEL BASE | 2,830 mm |
| GEAR SHIFT | 16F+16R / 32F+32R |
| REAR SUSPENSION | Category III |
| TIRE | 540/65R28 - 650/65R38 Radial |
| PTO | 6/8/21 Splines, 35/38/35mm, 540/1000 RPM |
Powerful Shangchai engine with Stage III emission compliance. Advanced 32-speed transmission for precise speed control. Massive 515mm ground clearance and 9,655kg max weight for superior stability. Category III three-point hitch for large implements. Ideal for deep plowing, heavy tillage, and large-scale agricultural operations.
