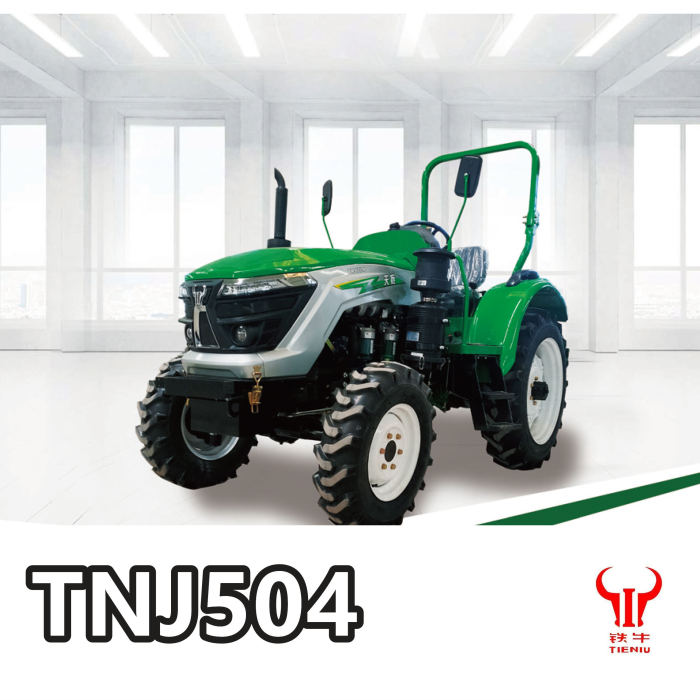

TNJ504 tractor agriculture medium horsepower four-wheel drive tractor
Tiantuo Tieniu TNJ504 tractor agriculture medium horsepower four-wheel drive tractor.
Product Details：
Model | TNJ504 | |
|---|---|---|
Type | 4*4 4WD | |
External dimensions (length*width*height)mm | 3510*1540*2240(Top of safety frame) | |
Wheelbase(mm) | | 1860 |
Wheeltread | Front wheel | 940、1040 |
Rear wheel | 940-1150 | |
Power transmission speed r/min | 540/720 | |
Minimum use quality(kg) | 1510 | |
Hydraulic suspention system form | Seperated type | |
Tyre Type | forward | 7.50-16 |
reverse | 11.2-28 | |
Rated power(kw) | 36.8 | |
Calibration speed(r/min) | 2400 | |
Engine | 4TE50K | |
Gearbox form | Mechanical plane composition | |
Steering systerm form | Full hydraulic steering | |
Form of suspension device | Rear three-point suspension | |
Anti-turnover/wheel house | Anti-turnover | |
Number of hydraulic output groups | 2 groups | |
Optional installation | Wheel house | |
Maximum counterweight(forward/reverse) | 72/60 | |
