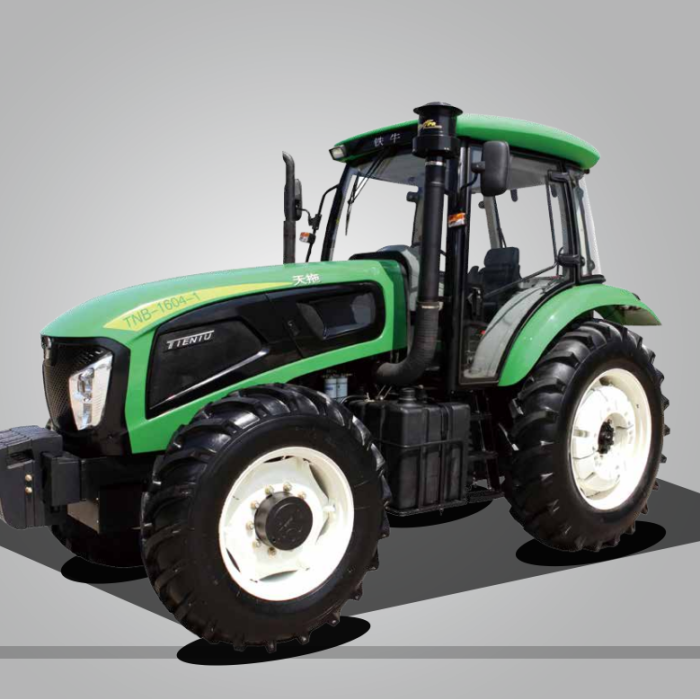

TNC1104 ~ TNC1504 Tractor Agricultural Machinery Farm Equipment Tractor
TNC1104 ~ TNC1504 Tractor Agricultural Machinery Farm Equipment Tractor
Categories | 30-150HP tractor |
---|---|
Model | TNC1104 ~ TNC1504 |
GREEN | DARK GREEN |
IRONMAKE | FOUR WHEEL |
SMALL HORSEPOWER | MEDIUM HORSEPOWER |
BRAND | Arable Bull/OEM |
FOB port | tIANJIN PORT |
Terms of Payment | L/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal |
Update Time | Dec 14,2024 |
Detail Information
TNC Series Tractor Product Features
·"TieNiu" brand series of high-horsepower wheeled tractor transmission box and the power output using mesh set shift, solve the problem to take off the block.
·Electrical control system adopts an integrated circuit, small volume, convenient installation, high safety performance.
·Hydraulic caliper brakes, braking effect is stable, energy saving. Gear more, wide speed range, and can satisfy various operation requirements
·Full hydraulic steering device, convenient operation, labor saving. Automatic antiskid differential, good adhesion performance, more gear the power output, supporting a variety of multiple operating machinery, to meet the plough, harrow, rotary tillage, subsoiling, sowing, harvesting and other field operations requirements, also can be used as a fixed power operation and short-distance transport operations.
·According to the requirements of operation more convenient and labor requirements, move back and forth adjustable seat, make your driving more comfortable, more efficient work.
Wheeled Tractors Technical Specification
Model | |||||
Part Name | TNC1104 | TNC1204 | TNC1304 | TNC1854 | TNC1504 |
mmOver size(length×width Xheight) mm | 5120×2218×3105 | 5120×2218×3105 | 5120×2218×3140 | 5120×2218×3140 | 5120×2218×3140 |
kg Min. operating weight (kg) | 6125 | 6125 | 6325 | 6325 | 6325 |
Type | 4×4 4WD | ||||
Engine | LR6M5U23/0810E | LR6M5U23/0882E | LR6A3ZU23/0956E | LR6M3ZU23/1030E | LR6M3ZU23/1103E |
Rated power (kW) | 81 | 88.2 | 95.6 | 103 | 110.3 |
Rated speed (r/min)
|
2300 | 2300 | 2300 | 2300 | 2300 |
clutch | Dry, monolithic, often joint, 350 single-acting clutch, power, pedal manipulation | ||||
Shuttle-type Gearshift F/R
|
(1+1)×(5×4)type of options when crawling to(1+1)×(5×4)×2component type, with reverse speed limit, basic is 20 + 15 r, f optional crawl to 40 f + 30 r file; Helical and spur gears, synchronizer and meshing swap file, main and deputy speed for manipulation | ||||
steering system type
|
Independent oil, hydraulic steering, front wheel steering | ||||
Front wheel / Rear wheel | 14.9-26 /16.9-38 | 14.9-26 /16.9-38 | 14.9-28 /18.4-38 | 14.9-28 /18.4-38 | 14.9-28 /18.4-38 |
Wheelbase (mm ) | 2718 | 2718 | 3080 | 2718 | 2718 |
Front (adjustable) mm | 1650、1760、1778、1862、 1888、1972、1990、2100 | 1650、1760、1778、1862、 1888、1972、1990、2100 | 1650、1760、1778、1862、 1888、1972、1990、2100 | 1650、1760、1778、1862、 1650、1760、1778、1862、 1888、1972、1990、2100 | 1888、1972、1990、2100 |
Rear (Stepless adjustment) mm | 1650 ~ 2368 | 1650 ~ 2368 | 1650 ~ 2368 | 1650 ~ 2368 | 1650 ~ 2368 |
Power output shaft type | Post and independence | ||||
singlespeedpower outputspeed | 760/1000or540/1000 | ||||
Tillage depth adjustment method | position、height responsible system | ||||
Hy drauliclifting systemtype | separated unit | ||||
suspension type | Class II | Class II | Class Ⅲ | Class Ⅲ | Class Ⅲ |
Anti tipping frame / cab | Safe driving room | ||||
chair | Adjustable seat | ||||
The weight before / after (film) | 400/400 | 400/400 | 500/600 | 500/600 | 500/600 |
Theweightbefore/after (kg) | three group |
